50Pcs Potentiometer Fixed Resistors Trimmer Variable Resistor 3362P-503 Resistors 50K Ohm Fixed Resistors GuangHuiy

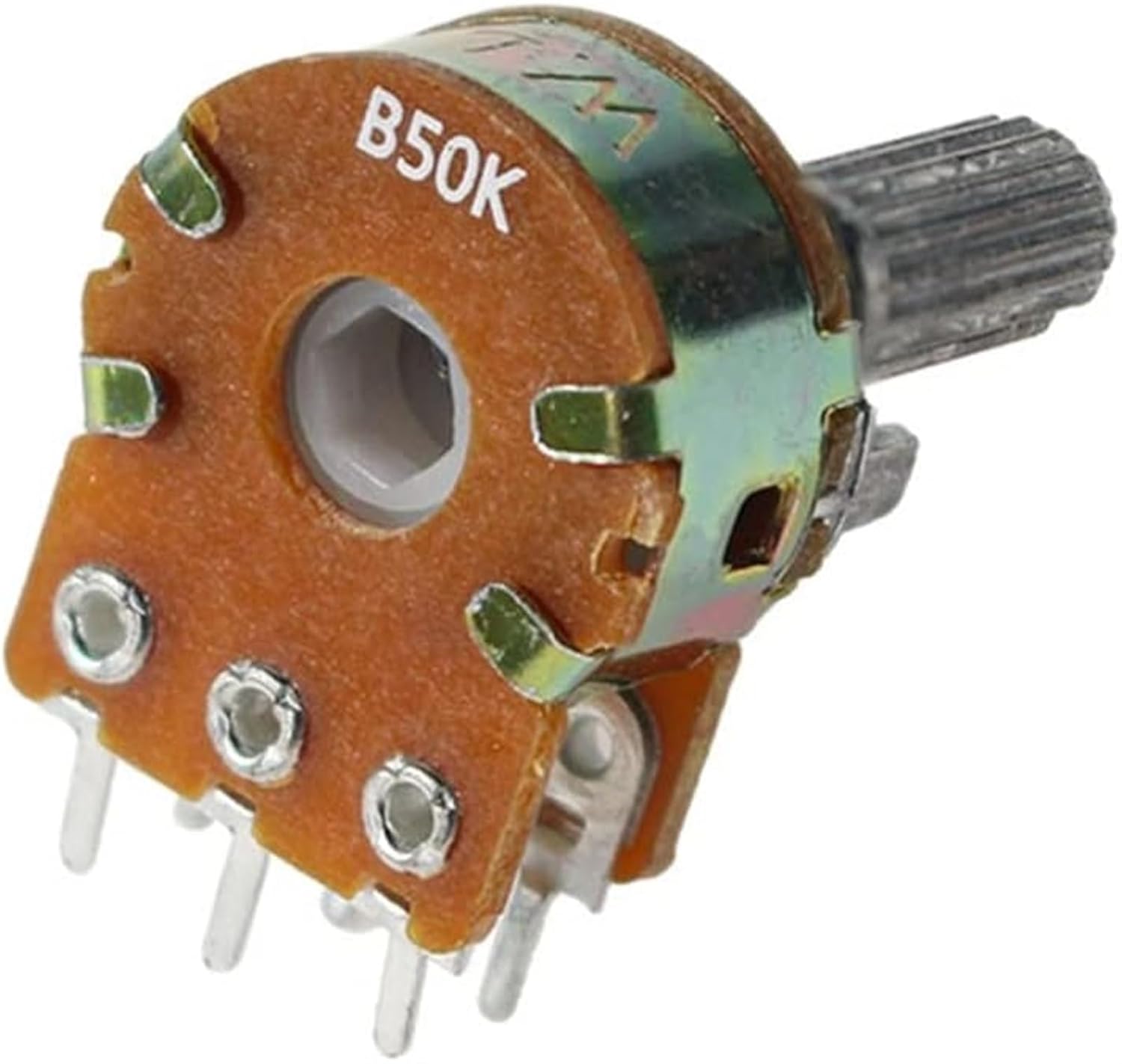

Potentiometers10PCS WH148 Potentiometer 20mm Shaft with Nuts and Washers 6Pin Linear Potentiometers B1K B2K B5K B10K B20K B50K B100K B500K B1MProduct Feature:and Name: WH148 PotentiometerProduct introduction:1. Potentiometer is an adjustable electronic component. It consists of a resistance body and a rotating or sliding system. By manually adjusting the shaft or sliding handle, change the moving contact in the resistance body. The position of, then changes the resistance value between the moving contact and any fixed end, thus changing the size of the voltage and current.2 double potentiometer is a kind of two sets of resistance substrate made of adjustment potentiometer, such as double channel sound, if you use two ordinary potentiometer to adjust the volume that is a very troublesome thing, with double potentiometer adjustment usher is very convenient. Multi-link potentiometer is also a kind of adjustment potentiometer, can do adult circuit number potentiometer, in audio, electronic equipment has many applications, realize adjustment.Parameters:1. Rotation Angle: 300 102. Rotating : 10 200gf3. Stop : 6.0kgf.cn Min4. Axial push-pull : 8.0kgf,cm5. Registration points: Center, 7/11/21/41 Detent6. Electrical of point position: 50 150gf.cm7. Resistance range: 10k1M8. Resistance tolerance: 20% (more than 1M30%)9. Load power: Curve B: 0.05W, other yhan B: 0.025W10. Use voltage: Curve B:50VDC other than B:25V AV11. Residual short rent: R25K 0.1%max, of total tesistance12.250K>R> 10K 20max 20 K R 10K max13. Insulation resistance: More than 100M at DC 250V 1minute14. Withstand voltage: 1 minute AC 250V<;;3dB16. Rotating noise: less than 100mV17. Rotation life: 10,000 cyclesPackage List:10PCS WH148 PotentiometerProduct application:Widely used in electrical equipment, audio equipment, commu

• WCCZEHAN
• Potentiometers
