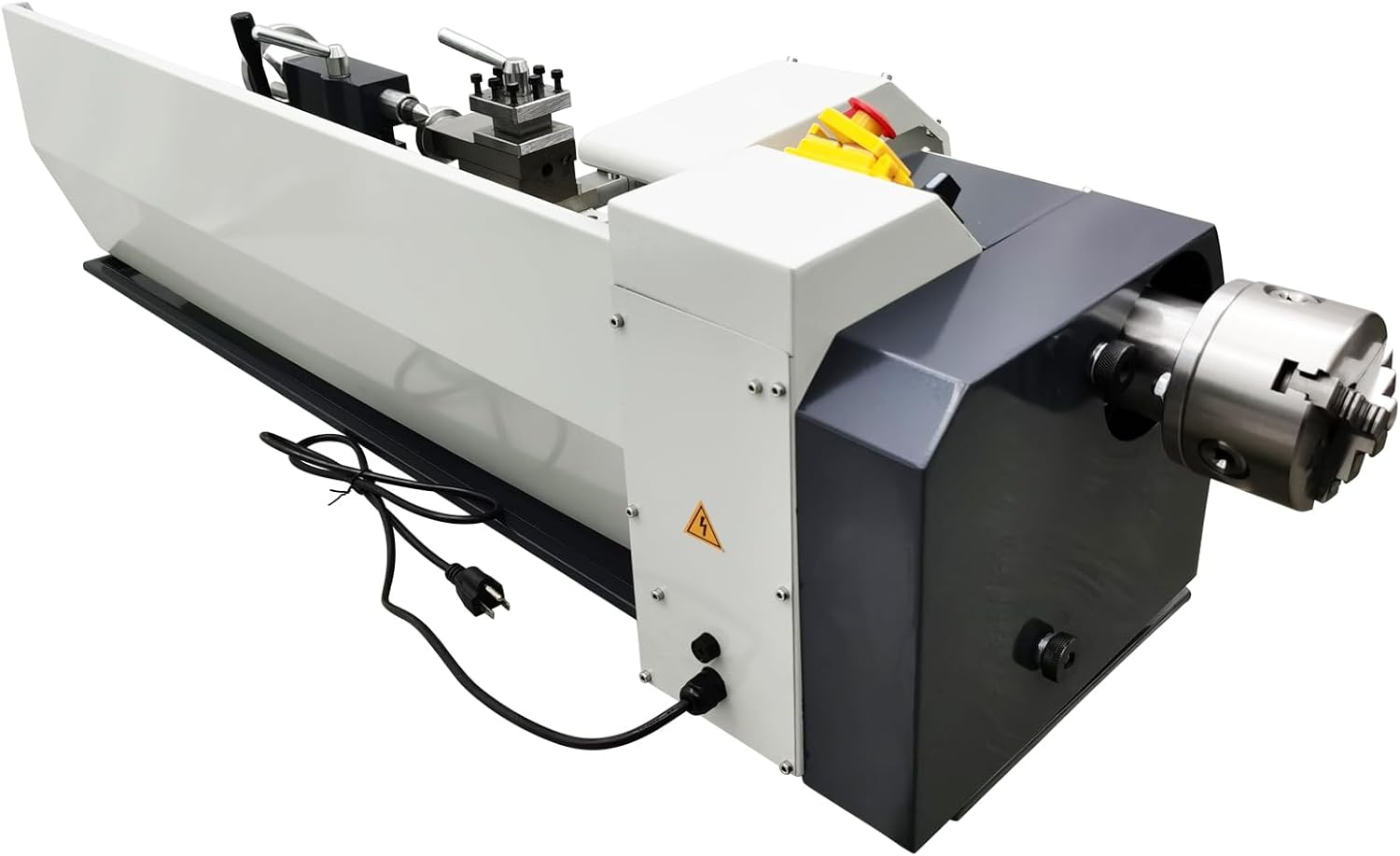

Precision Metal Lathe Metric/Inch Thread Metal Benchtop Lathe with 1100W Brushless Motor and Double Chuck 8"x32" 50-2500rpm 110V

Product ParametersModel: RC-210E Voltage: AC110V 50/60Hz(Brushless Motor) Power: 1100W(1.5HP) Length of center: 31.50"(800mm) Swing Over Bed: 8.27"(210mm) Concentricity tolerance: 0.03mm-0.05mm Rotary diameter of tool rest: 5.51"(140mm) Spindle bore: Right side: 1.50"(38mm) Left side: 1.26"(32mm) Max clamping diameter of right chuck: 4.92"(125mm) Max clamping diameter of left chuck: 3.54"(90mm) Width of lathe bed: 3.94"(100mm) Thread standard: Metric/imperial/customized Turning delay start time: 1s-30s Number of Spindle Speeds: Infinitely variable speeds Range of Inch Threads: 10-44T.P.I Range of metric threads: 0.5mm-3mm Spindle taper: MT5 Knife rest labour: Horizontal four-station Spindle rotation speed: 50-2500rpm Precision of the spindle: 0.01mm Automatic feed range: 0.01mm-0.4mm Tail frame taper: MT2 Maximum stroke of tool rest plate: 2.16"(55mm) Maximum stroke of middle plate: 2.95"(75mm) Maximum stroke of bottom plate: 26.77"(680mm) Maximum stroke of tailstock sleeve: 2.36"(60mm) Package size: 55.1"*18.5"*20.1"(140cm*47cm*51cm) Net weight/Gross weight: 178.5LB(81kg)/220.5LB(100kg)

• Metric/Inch Thread Switch: The metal lathe can automatically switch between metric and inch systems just through the control panel without the need of changing gears. The spindle rotation speed is divided into two adjustable gears: 50-1250 rpm and 1250-2500rpm
• Self-acting Feed: The metal lathe can make automatic feed in the X axis direction instead of manual feeding. The feed speed can be set through the control panel and the feed range can reach 0.01mm-0.4mm
• High Processing Accuracy: The benchtop lathe is equipped with two chucks on the left side, with the concentricity of 0.03-0.05mm, which can process longer objects. The processing accuracy is high especially for shaft and pipe part. The tailstock is movable and fixable with a maximum center distance of 31.5" at the far right. The lathe can make accurate operation by adjusting set screws, with the MT#2 taper in tailstock spindle
• Reliable Design: Above the lathe is designed with the forward and reverse switch, start and emergency stop switch. Users can immediately cut off the power supply in case of emergency, ensuring the operation reliability
• Wide Application: The metal lathe can be used for turning end face, internal and external thread, Buddha beads, as well as drilling, chamfering, cutting and other processing, which can meet most of your DIY processing needs
